How to Add a Calculated Field in a Pivot Table: Easy Guide

Sharing is caring!

Adding a calculated field in a pivot table helps you perform custom calculations using your existing data set. Instead of changing the original data, you can create new fields that calculate values such as profit, percentage, or ratios directly inside the pivot table.

This feature is especially useful in Excel reports, data analysis, and business dashboards, as it allows users to create dynamic calculations without using complex formulas outside the pivot.

Steps to Add a Calculated Field in Excel Pivot Table

Step 1: Create Your Pivot Table

1. Select your data range.
2. Go to the Insert tab.
3. Click PivotTable.
4. Choose to insert it in a New Worksheet or Existing Worksheet.
5. Click OK.

Once the pivot table layout appears, drag fields into the Rows and Values areas.

Step 2: Open the Calculated Field Dialog Box

1. Click anywhere inside the pivot table.
2. Go to the PivotTable Analyze tab on the ribbon.
3. Click Fields, Items & Sets.
4. Choose Calculated Field from the dropdown.

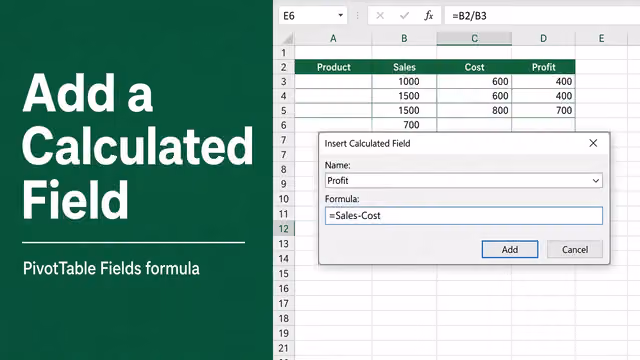

You’ll see the Insert Calculated Field dialog box.

Step 3: Define the Calculated Field

In the Insert Calculated Field window:

• Enter a Name for your field (e.g., Profit).
• In the Formula box, enter your formula using the names of the fields.
• You can double-click field names from the list to add them to the formula.

Example:

= 'Total Sales' - Cost

Make sure your field names are correctly typed or selected from the list.

Then, click Add and press OK.

Step 4: View the Calculated Field in Your Pivot Table

Your new calculated field appears as a new column in the pivot table. It works just like any other field and will automatically update when you apply filters, slicers, or refresh your data.

Common Examples of Calculated Fields in Excel

These examples show how calculated fields can be used to add useful metrics without editing the source data.

When to Use a Calculated Field vs a Formula in the Source Data

You should use a calculated field when:

• You don’t want to change the original dataset
• You need to show results inside the pivot table layout
• You want calculations that change dynamically with filters and slicers

You should use formulas in the source data when:

• The calculation needs to be reused in other sheets
• You want full control over cell-by-cell calculations
• The logic is too complex for a pivot table

Editing or Deleting a Calculated Field

To edit a calculated field:

1. Click inside the pivot table.
2. Go to PivotTable Analyze > Fields, Items & Sets > Calculated Field.
3. Select your field from the Name dropdown.
4. Update the formula.
5. Click Modify.

To delete a calculated field:

• Follow the same steps and click Delete instead of Modify.

This keeps your pivot clean and avoids confusion with outdated fields.

Tips for Using Calculated Fields Effectively

1) Use Field Names Carefully

Field names must match exactly, including spacing and spelling. If a field is called “Total Revenue”, typing “TotalRevenue” will cause an error.

2) Avoid Cell References

Calculated fields don’t support direct cell references like A1 or B2. They only use pivot field names. If you need to reference a cell, use formulas outside the pivot table.

3) Be Aware of Aggregation

Calculated fields operate on summarized data, not on individual rows. This can sometimes produce unexpected results.

For example:

If you try to calculate an average per item, it may not be accurate because it’s based on the total values, not row-by-row detail.

4) Use Number Formatting

After creating a calculated field, apply proper number formatting:

• Select the field in the pivot.
• Right-click > Number Format.
• Choose currency, percentage, etc.

This improves readability.

Limitations of Calculated Fields

Although calculated fields are useful, they do have some limits:

• No support for complex functions like IFERROR, VLOOKUP, or INDEX
• Cannot reference external ranges or named ranges
• Aggregation is limited to SUM, COUNT, MIN, MAX
• May give wrong results when dealing with averages, percentages, or ratios on a row-level basis

If your calculation logic is too advanced, consider using Power Pivot or adding a helper column in the source data.

Alternative: Use Power Pivot for More Complex Calculations

For more advanced needs, you can use Power Pivot and DAX (Data Analysis Expressions).

Power Pivot allows you to:

• Use functions like CALCULATE, RELATED, FILTER
• Perform row-level calculations
• Handle relationships between tables
• Create measure fields for more control

Power Pivot is available in Excel Professional Plus, Microsoft 365, and some Excel standalone versions.

To enable it:

1. Go to File > Options > Add-ins
2. Select COM Add-ins
3. Check Microsoft Power Pivot for Excel
4. Click OK

Then, use the Power Pivot tab to create custom measures that behave like advanced calculated fields.

Final Thoughts

Using a calculated field in a pivot table is a powerful way to perform custom calculations quickly and efficiently. It lets you enhance your reports, summarize meaningful data, and automate calculations without touching the original dataset.

Always remember:

• Use correct field names
• Keep calculations simple
• Format your results for clarity
• Use Power Pivot when you need advanced logic

With these tips, you’ll be able to create dynamic, data-driven reports that provide real value to your business or personal workflow.
