Managing business data often requires moving spreadsheets into a structured database system. Microsoft Excel is excellent for analysis, but storing large datasets in SQL Server makes reporting, querying, and automation easier.

If you regularly work with Excel files, knowing how to import Excel data into SQL Server is essential. In this guide, we will explain different ways to perform the import, step by step, with practical examples and tips.

Preparing Excel Data Before Import

Before moving data from Excel to SQL Server, ensure the spreadsheet is ready.

Clean Your Excel Data

  • Remove blank rows and unnecessary formatting.
  • Ensure column headers have no special characters or spaces.
  • Check for duplicate records and fix inconsistencies.

Set Data Types Properly

SQL Server requires correct data types (e.g., INT, VARCHAR, DATE). In Excel, ensure numbers, dates, and text fields are formatted consistently.

Excel ColumnExample DataSuggested SQL Data Type
CustomerID1001INT
NameJohn SmithVARCHAR(100)
DateOfBirth1990-05-22DATE
SalesAmount1500.75DECIMAL(10,2)

Save Excel in Compatible Format

SQL Server works best with:

  • .xlsx (Excel 2007 or later)
  • .xls (older versions)
  • .csv (comma-separated values, widely supported)

Methods to Import Excel Data into SQL Server

There are multiple ways to perform the import depending on your workflow. Let’s explore each method.

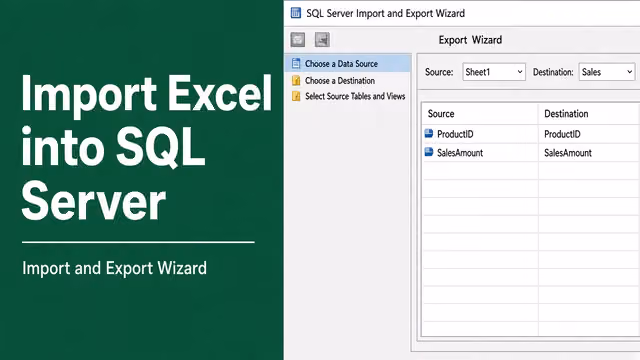

1) Import Using SQL Server Import and Export Wizard

The SQL Server Import and Export Wizard is a built-in tool that provides a step-by-step interface.

Steps:

  1. Open SQL Server Management Studio (SSMS).
  2. Connect to the database where you want to import the data.
  3. Right-click the database → Select Tasks → Import Data.
  4. In the Data Source window, choose Microsoft Excel.
  5. Browse and select the Excel file.
  6. Specify the Excel version and whether the first row contains column names.
  7. In the Destination, choose SQL Server Native Client.
  8. Map Excel columns to SQL Server table columns.
  9. Review the summary and click Finish.

Advantages:

  • Easy to use with no coding.
  • Can import directly into a new or existing table.

Limitations:

  • Not suitable for automation.
  • Large files may take longer to process.

2) Import Using T-SQL with OPENROWSET

OPENROWSET allows importing Excel data with SQL queries directly. This requires enabling Ad Hoc Distributed Queries.

Enable Ad Hoc Queries:

EXEC sp_configure 'show advanced options', 1;
RECONFIGURE;
EXEC sp_configure 'Ad Hoc Distributed Queries', 1;
RECONFIGURE;

Example Query:

SELECT *
INTO ExcelImportTable
FROM OPENROWSET('Microsoft.ACE.OLEDB.12.0',
'Excel 12.0;Database=C:\Data\Sales.xlsx;HDR=YES',
'SELECT * FROM [Sheet1$]');

Key Points:

  • HDR=YES means the first row is treated as headers.
  • [Sheet1$] specifies the sheet name.

Advantages:

  • Fast and direct import.
  • Useful for running scheduled scripts.

Limitations:

  • Requires driver installation (ACE OLEDB).
  • Permissions must be configured.

3) Import Using SQL Server Integration Services (SSIS)

SSIS (SQL Server Integration Services) is a powerful ETL (Extract, Transform, Load) tool for automating imports.

Steps:

  1. Open SQL Server Data Tools.
  2. Create a new Integration Services Project.
  3. Add a Data Flow Task.
  4. Select Excel Source → point to the Excel file.
  5. Choose OLE DB Destination → map to SQL Server table.
  6. Run the package to load data.

Advantages:

  • Supports large datasets.
  • Allows data transformation before loading.
  • Can be automated with SQL Server Agent Jobs.

Limitations:

  • Requires SSIS installation.
  • Setup may be complex for beginners.

4) Import Using BULK INSERT with CSV Files

If Excel is saved as CSV, you can use BULK INSERT for fast loading.

Example Query:

BULK INSERT SalesData
FROM 'C:\Data\Sales.csv'
WITH (
    FIELDTERMINATOR = ',',
    ROWTERMINATOR = '\n',
    FIRSTROW = 2
);

Explanation:

  • FIELDTERMINATOR defines column separator.
  • ROWTERMINATOR defines end of row.
  • FIRSTROW=2 skips header row.

Advantages:

  • Very fast for large files.
  • Easy to use with automation scripts.

Limitations:

  • Only works with CSV format.
  • No automatic data type conversion.

5) Import Using PowerShell Script

PowerShell can automate importing Excel files into SQL Server.

Example Script:

# Load Excel data
$ExcelFile = "C:\Data\Sales.xlsx"
$ConnectionString = "Server=SQLServer01;Database=TestDB;Integrated Security=True"

# Import using SQLBulkCopy
$Excel = New-Object -ComObject Excel.Application
$Workbook = $Excel.Workbooks.Open($ExcelFile)
$Worksheet = $Workbook.Sheets.Item(1)
$Range = $Worksheet.UsedRange.Value2

# Further code to push into SQL Server using SqlBulkCopy

Advantages:

  • Automates recurring imports.
  • Can schedule with Task Scheduler.

Limitations:

  • Requires scripting knowledge.
  • More setup compared to wizard.

Choosing the Right Method to Import Excel Data into SQL Server

Different scenarios require different import methods.

MethodBest ForAutomationDifficulty
Import WizardOne-time imports, small datasetsNoEasy
OPENROWSET (T-SQL)Quick imports via SQL queriesYesMedium
SSIS PackagesLarge-scale ETL processesYesAdvanced
BULK INSERT (CSV)High-performance loading of big CSVYesMedium
PowerShell ScriptCustom automation workflowsYesMedium

Common Issues and Fixes When Importing Excel Data

Even with proper setup, you may face errors. Here’s how to fix them.

Issue 1: Data Type Mismatch

  • Problem: Excel column contains mixed values (e.g., numbers and text).
  • Fix: Format Excel column consistently before import.

Issue 2: Truncated Data

  • Problem: Long text values cut off in SQL Server.
  • Fix: Use NVARCHAR(MAX) instead of default VARCHAR(255).

Issue 3: Permission Denied

  • Problem: Access denied when using BULK INSERT or OPENROWSET.
  • Fix: Ensure SQL Server has read permissions on the folder.

Issue 4: Excel Driver Not Found

  • Problem: Missing ACE OLEDB driver.
  • Fix: Install Microsoft Access Database Engine.

Best Practices for Importing Excel Data

  • Always backup your database before bulk imports.
  • Use staging tables for raw imports, then clean data with T-SQL.
  • Validate row counts to ensure no data loss.
  • Automate recurring imports with SSIS or PowerShell.
  • Optimize performance with indexes after loading data.

Final Thoughts

Importing Excel data into SQL Server is a common task for developers, analysts, and database administrators. Depending on your needs, you can use SQL Server Import Wizard, T-SQL OPENROWSET, SSIS packages, BULK INSERT with CSV, or PowerShell scripts.

By preparing your data, choosing the right import method, and following best practices, you can ensure smooth integration between Excel and SQL Server. This not only improves data management but also enhances your ability to run complex queries, generate reports, and make better business decisions.

Frequently Asked Questions

How do I import Excel data into SQL Server using SSMS?

You can use the SQL Server Import and Export Wizard in SSMS. Right-click the database, select Tasks > Import Data, choose Microsoft Excel as the source, and follow the step-by-step wizard to load your data into a table.

Can I use T-SQL to import Excel files into SQL Server?

Yes, you can use the OPENROWSET function with the ACE OLEDB driver to query Excel files directly. This requires enabling Ad Hoc Distributed Queries and ensuring the proper driver is installed.

What is the best method to import large Excel files into SQL Server?

For large files, the most reliable methods are SQL Server Integration Services (SSIS) or converting the Excel file to CSV and using BULK INSERT. These methods are optimized for high performance and automation.

Why does my Excel import fail due to data type mismatch?

A mismatch happens when Excel columns contain mixed data types, like numbers and text together. To fix this, format your Excel columns consistently and match them to the correct SQL Server data types such as INT, VARCHAR, or DATE.

Do I need to install drivers to import Excel into SQL Server?

Yes, if you are using OPENROWSET or linked servers, you need the Microsoft Access Database Engine (ACE OLEDB driver). Without it, SQL Server cannot read Excel files directly.

Can I automate Excel to SQL Server imports?

Yes, you can automate imports using SSIS packages, PowerShell scripts, or scheduled SQL jobs. These methods allow recurring data imports without manual work.
