How to Understand a Complex Formula in Excel?

Sharing is caring!

Have you ever struggled to decipher a complicated formula in Excel? Formulas with numerous functions, nested conditions, and long strings of cell references can be daunting at first glance. However, by breaking down the formula into its constituent parts and analyzing each component systematically, you can gain a clear understanding of how the formula works.

In this article, we’ll provide a step-by-step guide on how to understand a complex Excel formula, so you can troubleshoot issues, make modifications, and apply similar logic in your own spreadsheets.

Why Understanding Complex Formulas is Important

Before we dive into the process of understanding complex formulas, let’s discuss why this skill is crucial:

1. Troubleshooting: When a formula isn’t working as expected, understanding its components helps you identify and fix issues more quickly.
2. Modification: If you need to change a formula’s behavior or adapt it to a new situation, comprehending its structure allows you to make targeted modifications without breaking the formula.
3. Replication: Once you grasp the logic behind a complex formula, you can apply similar principles to create your own formulas for different scenarios.
4. Collaboration: Being able to explain a formula’s purpose and functionality to colleagues or clients enhances teamwork and knowledge sharing.
5. Efficiency: Mastering complex formulas enables you to automate more tasks, saving time and reducing manual effort.

Identify the Main Components of the Formula

The first step in understanding a complex formula is to identify its main components:

• Functions
• Cell references
• Ranges
• Named ranges
• Operators
• Constants

Let’s briefly explain each:

Functions

Excel functions are predefined formulas that perform calculations based on specified arguments. Common functions include SUM, AVERAGE, IF, VLOOKUP, INDEX, MATCH, etc.

Examples:

• SUM(A1:A10) calculates the total of values in cells A1 through A10
• IF(A1>100, “Over budget”, “Within budget”) returns “Over budget” if cell A1 is greater than 100, else it returns “Within budget”

Cell References

Cell references indicate a cell or range of cells in the worksheet and can be relative (e.g. A1) or absolute ($A$1).

Examples:

• A1 refers to the cell in column A, row 1. If copied across columns or rows, the reference will change relative to the new position.
• $A$1 is an absolute reference that will always refer to column A, row 1, even if copied to a different location.

Ranges

Ranges are groups of adjacent cells, defined using a colon (e.g. A1:A10).

Examples:

• A1:A10 selects cells A1 through A10
• B2:D6 selects the rectangular range from cell B2 to D6

Named Ranges

Named ranges allow you to assign a descriptive name to a cell or range for easier reference.

Example:

• Instead of using A1:A10, you could name that range “SalesData” and refer to it as such in formulas.

Operators

Operators define the type of calculation to perform, such as addition (+), subtraction (-), multiplication (*), division (/), exponents (^), concatenation (&), and comparison (=, <, >, <=, >=, <>).

Examples:

• A1+B1 adds the values in cells A1 and B1
• A1>B1 returns TRUE if A1 is greater than B1, FALSE otherwise

Constants

Constants are fixed values that do not change, like numbers or text strings enclosed in double quotes.

Examples:

• 100, 0.15, -42
• “Total”, “Yes”, “N/A”

Break Down the Formula into Sections

Once you’ve identified the main components, break the formula down into manageable sections. Look for:

• Parentheses ( ) that group parts of the formula
• Commas that separate function arguments
• Operators that separate different calculations

For example, consider this formula:

=IF(SUM(A1:A10)>1000,VLOOKUP(B1,$C$1:$D$10,2,FALSE),AVERAGE(E1:E10))

We can split it into these sections:

1. IF function: =IF(…
2. SUM function and its condition: SUM(A1:A10)>1000
3. VLOOKUP function and its arguments: VLOOKUP(B1,$C$1:$D$10,2,FALSE)
4. AVERAGE function: AVERAGE(E1:E10)
5. Closing parenthesis of the IF function: …)

Analyze Each Section Separately

Now, let’s analyze each section one by one:

IF Function

The IF function checks whether a condition is met and returns one value if TRUE and another if FALSE. Its syntax is:

=IF(logical_test, value_if_true, value_if_false)

• logical_test is the condition to evaluate
• value_if_true is the result if the condition is met
• value_if_false is the result if the condition is not met

In our example, the logical_test is SUM(A1:A10)>1000.

SUM Function and Its Condition

The SUM function adds up the values in a range of cells. Here, it calculates the total of cells A1 through A10.

The condition >1000 checks if this sum exceeds 1000.

So the IF statement will return the value_if_true if the sum of range A1:A10 is greater than 1000. Otherwise, it will return the value_if_false.

VLOOKUP Function

The VLOOKUP function, short for “Vertical Lookup”, searches for a specified value in the leftmost column of a table and returns a corresponding value from another column. Its syntax is:

=VLOOKUP(lookup_value, table_array, col_index_num, range_lookup)

• lookup_value is the value to search for
• table_array is the range containing the lookup table
• col_index_num is the column number (1 for leftmost) to retrieve the result from
• range_lookup is a logical value: TRUE for an approximate match or FALSE for an exact match

In our formula, VLOOKUP searches for the value in cell B1 within the leftmost column of range $C$1:$D$10, and returns the value from the 2nd column (col_index_num = 2) of that range. The FALSE argument ensures an exact match.

This is the value_if_true result that the IF function will return if its condition is met.

AVERAGE Function

The AVERAGE function calculates the arithmetic mean of values in a range. Here, it will average the values in cells E1 through E10.

This is the value_if_false result that the IF function will return if its condition is not met.

Put Everything Back Together

Now that we’ve analyzed each component, let’s reconstruct the overall logic of the formula:

=IF(SUM(A1:A10)>1000,VLOOKUP(B1,$C$1:$D$10,2,FALSE),AVERAGE(E1:E10))

In plain English, this formula does the following:

1. Calculates the sum of values in range A1:A10
2. If this sum is greater than 1000, it performs a VLOOKUP on the table $C$1:$D$10, searching for the value in B1 and returning the corresponding value from the 2nd column
3. If the sum is 1000 or less, it instead calculates the average of values in range E1:E10

Tips for Working with Complex Formulas

• Use indentation and line breaks to visually separate sections of the formula, improving readability
• Comment your formulas using N-dashes (–) to explain the purpose of each part
• Double-click on a cell reference or named range in the formula bar to highlight that range in the worksheet, helping you understand what data is being used

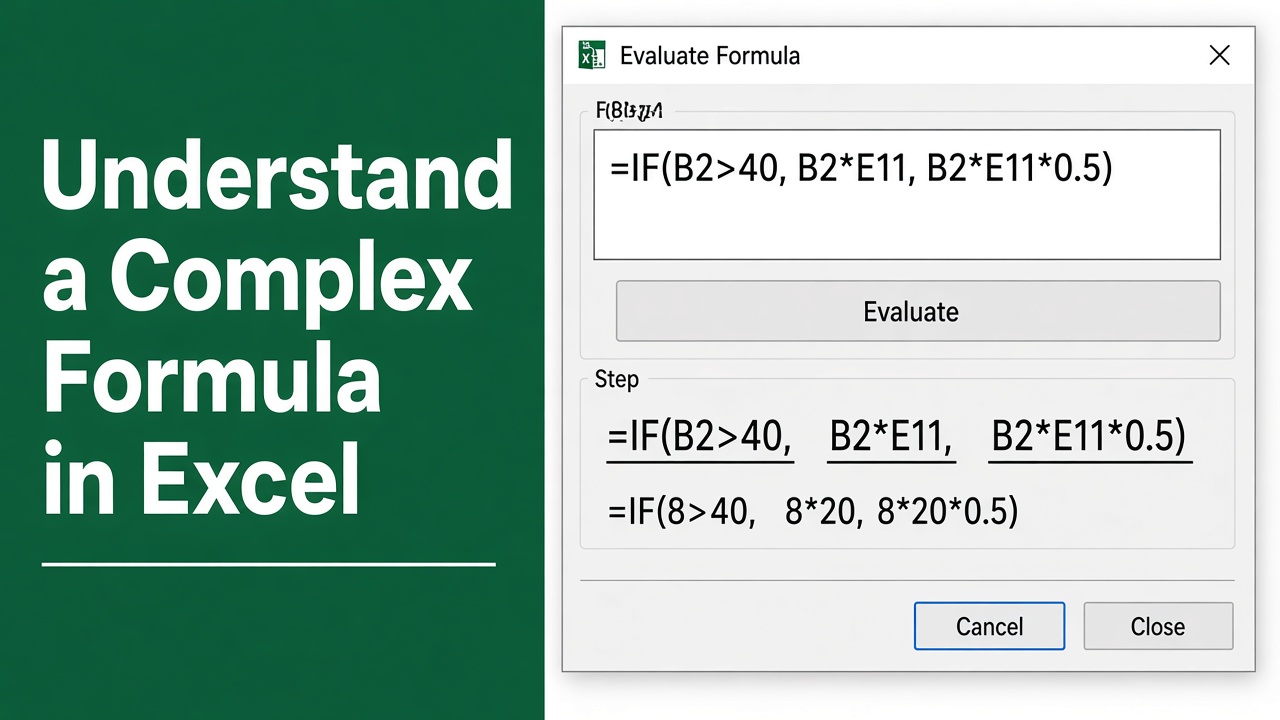

• Use the Evaluate Formula tool (under the Formulas tab) to step through the formula calculation and identify issues
• Simplify formulas by breaking them into smaller parts across multiple columns/rows
• Use named ranges for clarity and easy updating
• Check for common errors like unmatched parentheses, incorrect cell references, and division by zero

Debugging Complex Formulas

When a complex formula isn’t working as expected, here are some debugging techniques:

1. Check for error messages like #VALUE!, #REF!, #DIV/0!, #NAME?, #N/A, #NUM!, which indicate specific issues (e.g., invalid data types, deleted references, division by zero, misspelled names or functions, missing values, invalid numeric values)
2. Use the Evaluate Formula tool to step through the calculation and pinpoint where the error occurs
3. Break the formula into smaller parts in separate cells to isolate the issue
4. Check that all parentheses are properly matched
5. Verify that cell references and ranges are correct and not accidentally shifted
6. Ensure the correct data types (numbers, text, dates) are being used in each function
7. Double-check the spelling of functions and named ranges
8. Look for circular references (when a formula directly or indirectly refers to its own cell)

Example of Commenting a Complex Formula

Here’s how you could comment the example formula for better understanding:

=IF(
    -- If the condition below is true
    SUM(A1:A10)>1000,

    -- Return this if true
    VLOOKUP(B1,$C$1:$D$10,2,FALSE),

    -- Return this if false
    AVERAGE(E1:E10)
)

Final Thoughts

Understanding complex Excel formulas is a key skill for mastering spreadsheets. By methodically identifying components, breaking the formula into sections, analyzing each part, and reconstructing the overall logic, you can decipher even the most complicated formulas. Adopting best practices like using indentation, comments, named ranges, and formula evaluation will make your formulas more readable, maintainable, and error-free.
