How to Highlight All Cells Referenced by a Formula in Excel?

Sharing is caring!

In Excel, formulas often reference multiple cells across different sheets. It’s important to easily identify all the cells that are involved in these calculations. This helps avoid mistakes and ensures that you understand how your data is interconnected. In this guide, we will explain how to highlight all cells referenced by a formula in Excel, making it easier to work with complex data.

Why Highlight Cells Referenced by a Formula?

Highlighting cells referenced by a formula can help:

• Identify important data involved in calculations.
• Track changes to ensure the integrity of formulas.
• Troubleshoot errors in complex spreadsheets.
• Clarify relationships between data points.

Whether you are auditing a workbook or just trying to improve visibility, knowing how to easily locate and highlight these cells is an essential skill.

Methods to Highlight Cells Referenced by a Formula

There are several ways to highlight cells referenced by a formula in Excel, depending on your needs. We will explore some of the most efficient methods below.

1. Using Trace Dependents and Precedents in Excel

One of the easiest methods to highlight cells referenced by a formula is by using Excel’s built-in tools: Trace Dependents and Trace Precedents. These features allow you to visualize the relationship between cells and formulas.

Step 1: Select the Cell with the Formula

First, click on the cell that contains the formula. For example, if you have a formula in cell C2, click on that cell to highlight it.

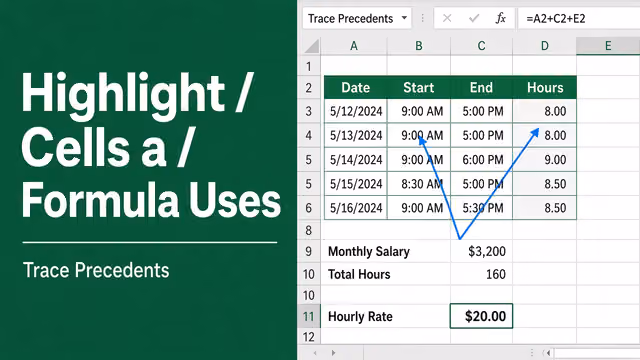

Step 2: Use Trace Precedents

Go to the Formulas tab on the ribbon, then click Trace Precedents. This feature shows you arrows pointing to all the cells referenced in the formula.

Step 3: Highlight the Precedent Cells

While the arrows help you see the referenced cells, they do not directly highlight them. To manually highlight these cells:

1. Click on the first cell referenced by the formula.
2. Hold the Ctrl key and click on the other cells to select them.
3. Once all cells are selected, change the fill color to highlight them.

Step 4: Use Trace Dependents (Optional)

Similarly, you can use Trace Dependents to see which cells are dependent on the selected cell’s output. This can be useful when auditing complex spreadsheets.

2. Using Find and Replace to Highlight Referenced Cells

Another simple method to highlight all cells referenced by a formula is to use Excel’s Find and Replace feature. This method is effective for identifying all the cells linked to a formula, especially in complex sheets.

Step 1: Select the Cell Containing the Formula

First, click on the cell that contains the formula you want to trace.

Step 2: Open the Find and Replace Dialog Box

Press Ctrl + F on Windows (or Command + F on Mac) to open the Find and Replace dialog box.

Step 3: Expand the Find Options

Click on the Options button to reveal additional search options.

Step 4: Check the Formula Reference Option

In the expanded options, look for the References section and check the box that says Formulas.

Step 5: Click “Find All”

Finally, click the Find All button. Excel will list all the cells that are referenced by the formula in the selected cell. You can select these cells and highlight them manually using a color fill to keep them visible.

3. Using Conditional Formatting to Highlight Referenced Cells

Another effective way to highlight referenced cells is by using conditional formatting. This is especially useful when you want to highlight multiple cells based on a condition or formula.

Step 1: Select the Cells Containing Formulas

First, select the cells that contain the formulas for which you want to highlight the referenced cells.

Step 2: Open Conditional Formatting

Go to the Home tab, then click on Conditional Formatting. From the dropdown menu, select New Rule.

Step 3: Use a Formula to Determine Which Cells to Format

In the New Formatting Rule dialog, choose Use a formula to determine which cells to format. In the formula box, enter a formula that identifies the referenced cells. For instance, you can use =ISFORMULA(A1) to check if a cell contains a formula.

Step 4: Choose a Format

Click on Format to select the highlight color you want to apply to the referenced cells. Once done, click OK.

4. Highlighting Cells Referenced by Array Formulas

Array formulas are often more complex and can reference a range of cells at once. To highlight the cells referenced by an array formula, you can follow similar steps, but make sure to identify the exact range used in the formula.

Step 1: Identify the Array Formula

Array formulas are enclosed in curly braces {}. Select the cell with the array formula.

Step 2: Highlight Referenced Range

Check the formula to determine the range of cells it references. You can manually select and highlight these cells, or use Trace Precedents as described earlier.

5. Using Go To Special for Quick Highlighting

The Go To Special feature allows you to quickly find and highlight all cells that are referenced in formulas.

Step 1: Open Go To Special

Click on Find & Select in the Home tab, then choose Go To Special.

Step 2: Choose Formulas

In the Go To Special dialog, select Formulas. This will select all cells that contain formulas in the active worksheet.

Step 3: Highlight the Cells

Once the referenced cells are selected, apply a fill color to highlight them.

Highlighting Cells Across Worksheets

If your formula references cells in other worksheets, you can still highlight these cells, although the process is more manual.

Step 1: Identify the Referenced Worksheet

Examine the formula to determine which worksheet is being referenced. For example, if your formula contains something like Sheet2!A1, it is referencing cell A1 in Sheet2.

Step 2: Highlight the Cells in the Referenced Worksheet

Navigate to the referenced worksheet and highlight the cells as described earlier. Use the same fill color to ensure consistency across worksheets.

Using VBA to Highlight All Referenced Cells

If you need to highlight all referenced cells across multiple formulas or large datasets, using a VBA (Visual Basic for Applications) script can automate the process.

Step 1: Open VBA Editor

Press Alt + F11 to open the VBA editor. In the editor, go to Insert and select Module.

Step 2: Add VBA Code

Here is a sample code that highlights all referenced cells for the active cell:

Sub HighlightReferencedCells()
    Dim cell As Range
    Dim prec As Range
    On Error Resume Next
    For Each cell In Selection
        Set prec = cell.DirectPrecedents
        If Not prec Is Nothing Then
            prec.Interior.Color = RGB(255, 255, 0) ' Highlight in yellow
        End If
    Next cell
End Sub

Step 3: Run the Script

Close the editor and run the script by pressing F5. This will highlight all the cells referenced by formulas in the selected range.

Troubleshooting Common Issues

Issue 1: Formula References in Locked Cells

If the referenced cells are in a protected or locked sheet, you may not be able to highlight them. To fix this:

• Unprotect the sheet by going to Review > Unprotect Sheet.
• Once unprotected, follow the earlier steps to highlight the cells.

Issue 2: Broken Links in Formulas

Sometimes, formulas may reference cells that no longer exist. This can happen if data is moved or deleted. In this case, use the Error Checking tool under the Formulas tab to locate and fix broken references.

Issue 3: Highlighting Cells in Large Data Sets

If you are working with a large dataset, manually highlighting referenced cells can be time-consuming. Consider using the VBA method or Conditional Formatting to simplify the process.

Final Thoughts

Highlighting all cells referenced by a formula in Excel is a crucial step in ensuring that your data is accurate and that you understand the flow of information within your workbook. Whether you use built-in tools like Trace Precedents and Go To Special, or employ advanced techniques like VBA scripting, you can efficiently highlight all relevant cells.

By using the methods outlined in this guide, you will be able to manage and troubleshoot formulas more effectively, ensuring that your Excel worksheets remain accurate and easy to understand.
