How to Disconnect Filter Controls from Pivot Table in Excel?

Sharing is caring!

PivotTables are powerful tools in Microsoft Excel for data analysis and reporting. However, managing filter controls, such as Slicers and Timelines, across multiple PivotTables can sometimes lead to confusion—especially when filters apply to tables that shouldn’t be connected.

In this guide, you’ll learn how to disconnect filter controls from PivotTable reports, helping you avoid data source issues, improve report accuracy, and gain better control over your Excel dashboards.

Why Disconnect Filter Controls?

Slicers and filter controls enhance usability by allowing users to filter data visually. But when one Slicer is linked to multiple PivotTables, any change applies to all of them. This can lead to issues such as:

• Inability to change the PivotTable data source.
• Incorrect data representation when unrelated PivotTables reflect the same filter.
• Complex report behavior that’s hard to troubleshoot.

Disconnecting filter controls allows each PivotTable to operate independently, giving you cleaner and more flexible Excel reports.

How to Identify Connected Filter Controls

Before you disconnect filters, you need to identify which controls are currently linked to your PivotTables.

Using the “Go To Special” Tool

Sometimes, Slicers may not be visible, especially on crowded worksheets. Here’s how you can find them:

1. Go to the Home tab.
2. Click Find & Select > Go To Special.
3. Choose Objects and click OK.

Excel will highlight all graphical objects, including Slicers and Timelines, on the sheet. Now you can click each one to see its connections.

How to Disconnect Slicers from PivotTables

Disconnecting a Slicer from a PivotTable involves just a few steps. Once disconnected, the filter will no longer affect that table.

1. Select the Slicer:
   • Click directly on the Slicer if it’s visible.
   • Or, use the Go To Special method to locate it.
2. Open Slicer Tools:
   • Once selected, go to the Slicer Tools Options tab that appears on the Ribbon.

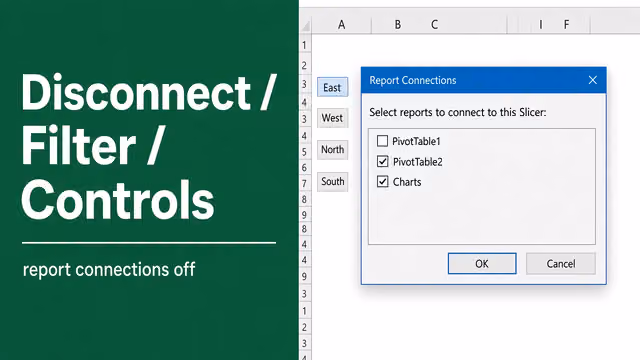

3. Access Report Connections:
   • Click on Report Connections (in some versions, it may be labeled Filter Connections).
4. Disconnect the PivotTable:
   • A list of PivotTables connected to the slicer will appear.
   • Uncheck the boxes next to any PivotTable you want to disconnect.
   • Click OK to apply changes.

Optional: Deleting the Slicer

If disconnecting a Slicer doesn’t meet your needs—or you want a clean slate—you can simply delete it.

• Select the Slicer by clicking on it.
• Press the Delete key.

You can always recreate a new slicer later by going to: Insert > Slicer > Choose Field > OK.

Changing the Data Source After Disconnecting Filters

One common issue users face is the inability to change the data source of a PivotTable because of an active connection to a slicer. Once the slicer is disconnected (or deleted), changing the source becomes possible.

Follow These Steps

1. Select the PivotTable.
2. Go to the PivotTable Analyze tab.
3. Click on Change Data Source.
4. Choose the new data range or table.

This option will now be available since there are no shared slicers locking the PivotTable’s configuration.

Using VBA to Manage Filter Controls

If you need advanced control or want to toggle filters across PivotTables using code, Visual Basic for Applications (VBA) is a helpful solution. With a simple macro, you can enable or disable filter controls for all PivotFields in a selected table.

Sample VBA Code

Sub Toggle_PT_Filters()
    Dim pf As PivotField
    On Error Resume Next
    For Each pf In ActiveCell.PivotTable.PivotFields
        pf.EnableItemSelection = Not pf.EnableItemSelection
    Next pf
End Sub

How This Works

• It loops through each PivotField in the active PivotTable.
• The macro toggles the EnableItemSelection property.
• This disables (or re-enables) filter selection options.

Tip: Press Alt + F11 to open the VBA Editor, insert a new module, and paste the code. Then run it while a cell inside your target PivotTable is selected.

Managing Filter Connections for Multiple PivotTables

When you’re working with multiple PivotTables on the same worksheet or dashboard, controlling their filter independence is essential. Here’s how to check and manage connections across the workbook.

Use the Report Connections Dialog

If you have several PivotTables and want each to have its own filters, you’ll need to create separate slicers for each or use VBA to automate control.

Practical Example of Managing Slicers for Pivot Table

Here’s a simple overview of how slicers relate to PivotTables:

To make InventoryReport independent, you would:

• Select RegionSlicer → Uncheck InventoryReport
• Select DateSlicer → Uncheck InventoryReport

This gives InventoryReport a dedicated filter set.

Troubleshooting Common Issues

1) Can’t Change Data Source

Cause: Slicer is connected to the PivotTable.

Fix: Disconnect the slicer using Report Connections, then try changing the data source.

2) Filters Apply to Unrelated PivotTables

Cause: Multiple PivotTables are connected to the same slicer.

Fix: Use the Report Connections dialog to remove unwanted links.

3) Deleted a Slicer by Mistake

Fix: Recreate it:

1. Select the PivotTable.
2. Go to Insert > Slicer.
3. Choose the field and click OK.

Summary

Disconnecting filter controls, such as slicers, from PivotTables is an essential skill when managing complex Excel workbooks. It gives you full control over your data, ensures accurate reporting, and allows independent PivotTable operations.

Here’s a quick recap of what you’ve learned:

• Use Report Connections to manage slicer links.
• Use Go To Special to locate hidden slicers.
• Delete slicers if no longer needed.
• Use VBA for advanced filter control.
• Always rename your PivotTables for better visibility.
