How to Check Excel Pivot Table Source: A Complete Guide
Have you ever looked at a pivot table in Microsoft Excel and wondered where the underlying data came from? Pivot tables are powerful tools for summarizing and analyzing large datasets, but it’s important to be able to trace the source data to ensure accuracy and make updates as needed. In this article, we’ll walk through step-by-step how to check the source data for an Excel pivot table.
Why Check the Pivot Table Source?
Before learning about the process, let’s discuss a few key reasons why you might need to check the source data behind a pivot table:
- To verify the accuracy of the summarized data
- To update the source data and refresh the pivot table
- To troubleshoot issues or unexpected results in the pivot table
- To copy or move the source data to another location
Checking the Pivot Table Source
Now let’s discuss how to actually go about checking where your pivot table data is pulled from. We’ll break it down into a series of steps.
Step 1: Select Any Cell in the Pivot Table
The first step is to click on any cell inside the pivot table that you want to trace the source for. This can be a value cell or a row/column heading cell. Just be sure you’ve selected a cell that is part of the actual pivot table.
Step 2: Go to the Analyze Tab on the Ribbon
With a pivot table cell selected, you should see the PivotTable Tools tab appear on the Excel ribbon at the top of the screen, with an Analyze and Design subtab. Click on the Analyze tab to view the pivot table options.
Step 3: Click on the Select Button and Choose Entire Pivot Table
In the Actions group of the Analyze tab, you will see a Select button. Click on that Select button and choose Entire PivotTable from the dropdown menu. This will select all the cells that make up the pivot table.
Step 4: Find the Table/Range Field on the Ribbon

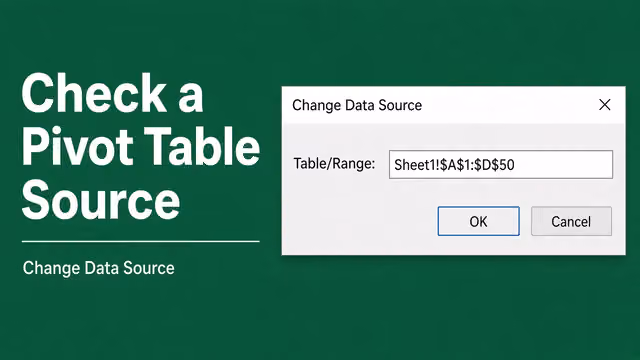

Now with the entire pivot table selected, look at the PivotTable group on the Ribbon. One of the fields displayed will be the Table/Range field. This field displays the source data range for the selected pivot table.
The source data range will either refer to:
- An Excel Table: If the source is an Excel table, the field will display a table name like Table1, Table2, etc.
- A Range: If the source is a normal range of cells, it will show the range address like A1:D20.
- An External Source: If the data comes from an external source like another spreadsheet or a database, it will show the name of the external connection.
So in summary, to view the source data range, simply select the pivot table and then look at the Table/Range field on the Ribbon under Analyze > PivotTable. This field shows you a direct link to access the cells where the pivot table is pulling its data from.
Step 5: Jump to the Source Data Range (Optional)
If you want to select or view the actual source data cells, you can click on the Table/Range field on the Ribbon. This will instantly jump your selection to highlight the source cells that feed into your pivot table.
From there you can view, edit, or manipulate the source data as needed. Just remember if you make any changes, to refresh the pivot table to update the summary information.
Checking the Source for Multiple Pivot Tables
If your spreadsheet contains more than one pivot table, you will need to check the source data for each pivot table individually. Select a cell inside the first pivot table, then follow Steps 1-4 above to view its Table/Range source. Then repeat the process for the next pivot table, and so on.
There isn’t a way to view all the pivot table sources at once. You have to check each pivot table one at a time to see which cells it is referencing for its data.
Troubleshooting Source Data Issues
Sometimes you may run into issues when trying to check or update the source data for a pivot table. Here are a few common problems and how to resolve them:
Source Data is in a Different Spreadsheet
If the Table/Range field shows the source is an external Excel file, you’ll need to open that other spreadsheet to view or edit the data. The pivot table will automatically update if you make changes in the other file.
Pivot Table Doesn’t Refresh with Source Data Changes
If you edit the source data but the pivot table doesn’t update, try manually refreshing it. Right-click on the pivot table, then select Refresh from the menu. If that still doesn’t work, there may be an issue with the link to the source data.
Source Data Range is Deleted or Moved
If you delete or move the source data range, the pivot table won’t be able to find the data to summarize. You’ll see #REF! errors in the pivot table cells. To fix this, you’ll need to recreate the source data in the original location or change the Table/Range source field to point to the new data location.
Best Practices for Managing Pivot Table Source Data
To avoid issues with pivot table data sources, follow these tips:
- Use Excel Tables for your source data whenever possible. Tables are easier for pivot tables to reference and automatically expand to include new data.
- Put your source data in a separate worksheet from the pivot table. This makes it easier to locate and update the source without disrupting the pivot table.
- Refresh your pivot tables after making any changes to the source data to keep the summary up to date.
- Be cautious about deleting, moving, or renaming source data ranges or tables, as this can break pivot table references.
Final Thoughts
Knowing how to check the source data for a pivot table is an essential skill for working with these powerful summary tools in Excel. By following the steps outlined in this article, you can quickly view and jump to the cells that feed into your pivot tables.
This allows you to verify the accuracy of the underlying data, make updates as needed, and troubleshoot any issues that arise. With practice, checking and managing pivot table source data will become second nature and help you master your spreadsheet analysis.
FAQs
Why is it important to check the source data of a pivot table?
How do I select the entire pivot table in Excel?
Where can I find the source data range for a pivot table?
Can I check the source data for multiple pivot tables at once?
What should I do if the source data range is deleted or moved?
