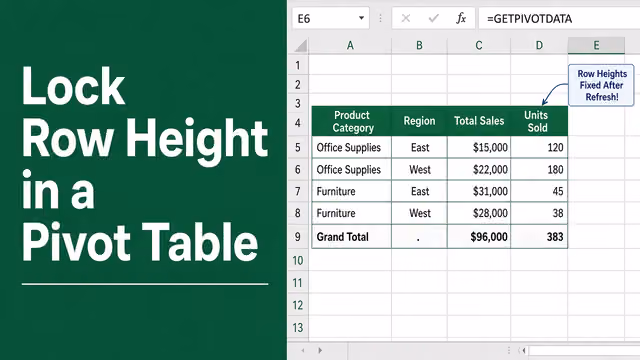

How to Lock Row Height in Excel Pivot Table: Step-by-Step Guide
Are you tired of your Excel pivot table row heights constantly changing whenever you refresh or update your data? Do you want to maintain a consistent and professional look for your pivot table reports? Look no further! In this article, we will guide you through the step-by-step process of locking row heights in your Excel pivot table, ensuring that your reports remain neat and easy to read.
By the end of this guide, you will master the technique of preserving your pivot table’s formatting and presenting your data in a visually appealing manner.
Understanding Pivot Tables and Row Heights
What is a Pivot Table?
A pivot table is a powerful tool in Excel that allows you to summarize, analyze, and present large amounts of data in a concise and interactive manner. It enables you to quickly identify patterns, trends, and insights by dynamically rearranging and aggregating your data based on selected criteria. Pivot tables are widely used across various industries, from finance and marketing to operations and human resources, as they provide a user-friendly way to explore and visualize complex datasets.
The Default Behavior of Row Heights
By default, when you create or refresh a pivot table, Excel automatically adjusts the row heights to accommodate the content within each cell. While this feature can be helpful in some cases, it can also lead to inconsistent and unprofessional-looking reports, especially when you have varying amounts of data in each row. The constantly changing row heights can make it difficult for readers to follow the data and can detract from the overall presentation of your report.
Step-by-Step Guide to Locking Row Heights
To ensure that your pivot table maintains a consistent and professional appearance, follow these simple steps to lock the row heights:
Step 1: Create or Open Your Pivot Table
- Open your Excel workbook containing the data you want to analyze.
- Select any cell within your data range.
- Go to the Insert tab on the Excel ribbon.
- Click on PivotTable in the Tables group.
- Choose the data range and click OK to create a new pivot table.
If you already have an existing pivot table, simply open the Excel workbook containing the pivot table and proceed to the next step.
Step 2: Adjust the Row Heights
- Select any cell within your pivot table.
- Go to the Home tab on the Excel ribbon.
- In the Cells group, click on Format.
- Choose Row Height.
- Enter your desired row height value (e.g., 20) and click OK.
By setting a specific row height value, you ensure that all rows in your pivot table will have a consistent height, regardless of the amount of data in each cell.
Step 3: Lock the Row Heights
- Select all the rows in your pivot table by clicking on the row numbers.
- Right-click on any selected row number.
- Choose Format Cells from the context menu.
- In the Format Cells dialog box, go to the Protection tab.
- Check the box next to Locked.
- Click OK to apply the changes.
Locking the row heights prevents Excel from automatically adjusting them when you refresh or update your pivot table data.
Step 4: Protect the Sheet
- Go to the Review tab on the Excel ribbon.
- In the Changes group, click on Protect Sheet.
- In the Protect Sheet dialog box, enter a password (optional) and select the desired permissions.
- Make sure the Select locked cells option is unchecked.
- Click OK to protect the sheet.
Protecting the sheet ensures that the locked row heights cannot be inadvertently changed by other users or by accidental edits.
By following these steps, you have successfully locked the row heights in your Excel pivot table. Now, whenever you refresh or update your data, the row heights will remain consistent, ensuring a professional and readable report.
Tips for Working with Locked Row Heights
Unlocking Specific Rows
If you need to adjust the height of a specific row, you can unlock it by selecting the row, going to Format Cells > Protection, and unchecking the Locked box. This allows you to make individual row height adjustments while keeping the rest of the rows locked.
Copying Formats
If you have multiple pivot tables in your workbook, you can easily copy the locked row height format from one table to another using the Format Painter tool. Simply select a cell with the desired format, click on the Format Painter icon in the Clipboard group on the Home tab, and then click on the pivot table where you want to apply the format.
Adjusting Column Widths
While this article focuses on locking row heights, you can also adjust and lock the column widths in your pivot table using a similar process. Select the columns you want to adjust, right-click, and choose Column Width from the context menu. Enter your desired width value and follow the steps to lock the column widths and protect the sheet.
Best Practices for Pivot Table Formatting
In addition to locking row heights, there are several best practices you can follow to enhance the readability and visual appeal of your pivot table reports:
- Use Clear and Concise Labels: Ensure that your row and column labels are clear, concise, and meaningful. Avoid using abbreviations or technical jargon that may confuse your audience.
- Apply Consistent Formatting: Maintain a consistent formatting style throughout your pivot table. Use the same font, font size, and color scheme for headers, labels, and data cells.
- Highlight Key Insights: Use conditional formatting to highlight important data points, trends, or outliers in your pivot table. This helps draw the reader’s attention to key insights and makes your report more engaging.
- Organize Data with Subtotals and Grand Totals: Utilize the subtotal and grand total features in your pivot table to provide a clear hierarchical structure to your data. This makes it easier for readers to understand the relationships between different data categories.
- Add Charts and Graphs: Complement your pivot table with visually appealing charts and graphs that effectively communicate your data’s story. Choose the appropriate chart type based on the nature of your data and the insights you want to convey.
Final Thoughts
Locking row heights in your Excel pivot table is a simple yet effective way to maintain a consistent and professional appearance for your reports. By following the step-by-step guide provided in this article, you can easily lock the row heights, ensuring that your pivot table remains neat and easy to read, even when refreshing or updating your data.
Furthermore, by implementing the best practices for pivot table formatting, such as using clear labels, applying consistent formatting, highlighting key insights, organizing data with subtotals and grand totals, and adding charts and graphs, you can take your pivot table reports to the next level.
FAQs
Can I lock row heights in a regular Excel table?
Yes, you can use the same steps outlined in this article to lock the row heights in a regular Excel table. Simply select the table rows instead of the pivot table rows.
Will locking row heights affect the functionality of my pivot table?
No, locking the row heights will not impact the functionality of your pivot table. You can still filter, sort, and rearrange your data as needed.
Can I lock row heights for specific rows only?
Yes, you can selectively lock the row heights for specific rows in your pivot table. Simply select the desired rows and follow the steps to lock them while leaving the others unlocked.
How do I unlock specific rows in a pivot table with locked row heights?
To unlock specific rows in a pivot table with locked row heights, select the desired rows, right-click, and choose “Format Cells” from the context menu. In the “Format Cells” dialog box, go to the “Protection” tab and uncheck the “Locked” box. Click “OK” to apply the changes.
Can I apply the same technique to lock column widths in a pivot table?
Yes, you can use a similar process to lock column widths in your pivot table. Select the columns you want to adjust, right-click, and choose “Column Width” from the context menu. Enter your desired width value and follow the steps to lock the column widths and protect the sheet. If you need a more detailed guide, you can also search for “excel pivot table column width” in the help section to find step-by-step instructions. This will ensure that your pivot table looks exactly how you want it to, without any unexpected changes to the column widths. Taking the time to lock the column widths in your pivot table can save you from having to constantly readjust them, making your data analysis experience much smoother.
