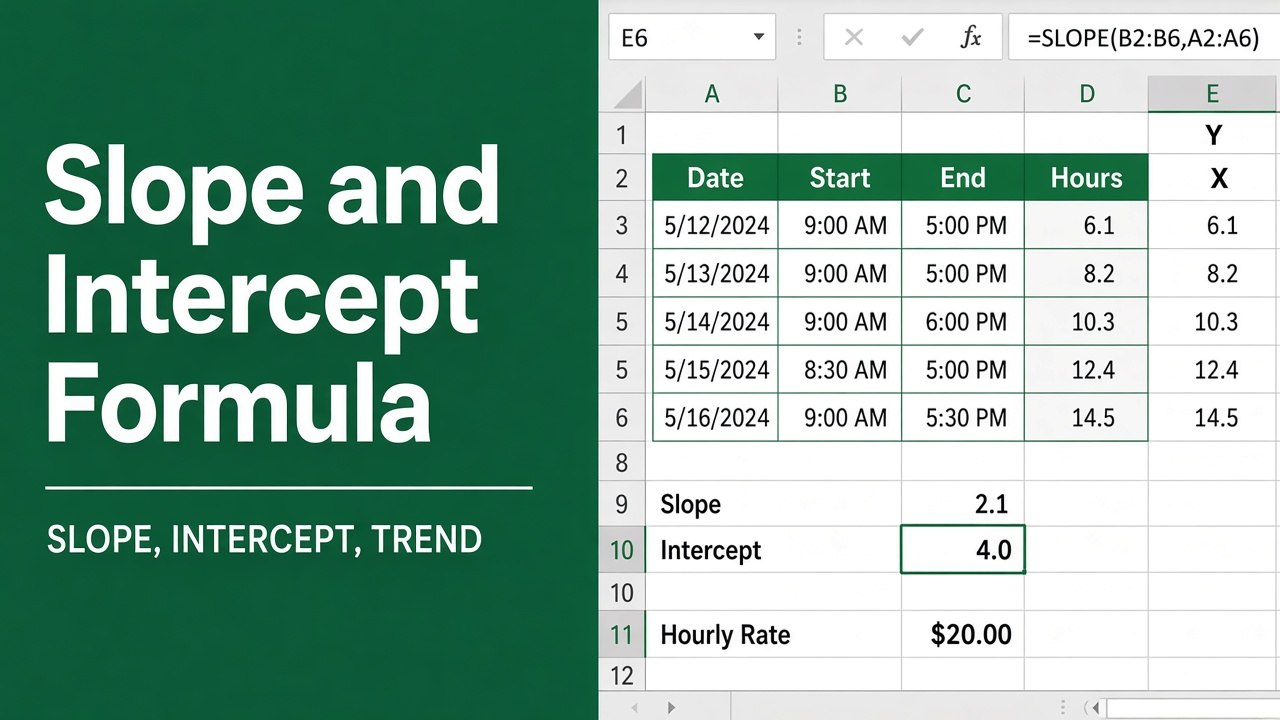

Easy Excel Formula for Slope and Intercept (With Example!)

Sharing is caring!

When working with data analysis in Excel, understanding how to calculate the slope and intercept of a linear equation can be incredibly valuable. These key components of a line, represented by the slope (m) and y-intercept (b), are foundational in statistics and trend analysis.

Excel makes it simple to determine these values with built-in formulas like SLOPE() and INTERCEPT(), which allow users to extract insights from their data efficiently. Whether you’re analyzing sales trends, predicting future performance, or performing regression analysis, learning how to use Excel’s slope and intercept formulas can streamline your calculations and improve accuracy.

Key Terms to Know

  • Slope: Measures the steepness or incline of a line, indicating how one variable changes in relation to another.
  • Intercept: The Y-coordinate where the line crosses the vertical axis, representing the starting value when the independent variable (X) is zero.

Benefits of Using Excel for Slope and Intercept Calculations

Excel provides powerful tools to analyze trends and relationships in datasets efficiently. Whether you’re projecting future performance, exploring correlations, or creating predictive models, these formulas allow you to:

  • Save time by automating calculations.
  • Ensure consistency across large datasets.
  • Visualize trends using charts and equations.

How to Calculate Slope in Excel

The SLOPE function in Excel is a quick and reliable way to determine the slope of a trend line.

Syntax of the SLOPE Function

SLOPE(known_y’s, known_x’s)
  • known_y’s: The dependent variable values (Y-axis).
  • known_x’s: The independent variable values (X-axis).

Example Calculation

Consider this dataset:

X (Independent Variable)Y (Dependent Variable)
12
24
36
48
510

To calculate the slope:

  1. Input the X values in column A and the Y values in column B.
  2. Enter the formula =SLOPE(B2:B6, A2:A6) in a blank cell.
  3. The result will be 2, indicating that for every unit increase in X, Y increases by 2 units.

How to Calculate Intercept in Excel

The INTERCEPT function calculates the Y-intercept, or where the line crosses the Y-axis.

Syntax of the INTERCEPT Function

INTERCEPT(known_y’s, known_x’s)
  • known_y’s: The dependent variable values (Y-axis).
  • known_x’s: The independent variable values (X-axis).

Example Calculation

Using the same dataset:

  1. Place the X and Y values in columns A and B, respectively.
  2. Enter the formula =INTERCEPT(B2:B6, A2:A6) in a cell.
  3. The result will be 0, showing that the trend line passes through the origin.

Combining Slope and Intercept in Linear Equations

To fully define a linear relationship, combine the slope and intercept in the equation:

Y = mX + b

Where:

  • m is the slope.
  • b is the intercept.

Practical Example

If the slope is 2 and the intercept is 0, the equation becomes:

Y = 2X + 0

This means that every unit increase in X results in a corresponding 2-unit increase in Y.

Frequently Asked Questions

1. How to calculate slope in Excel with a graph

We already learnt how to calculate slope in excel without a graph using the slope function. Now, let’s learn how to calculate slope with a graph:

  1. Create a scatter plot: Select your data and insert a scatter plot.
  2. Add a trendline: Right-click on any data point on the graph and select “Add Trendline.”
  3. Display the equation: In the “Trendline Options” (or Format Trendline pane), check the box that says “Display Equation on chart.”
  4. The slope is the coefficient of x in the equation.

2. How to calculate the slope of a trendline in Excel

  • Follow the steps above to display the equation of the trendline.
  • The slope is the coefficient of x in the equation.

3. How to find the intercept on a graph in Excel

  • Display the equation of the trendline on your graph (see steps above).
  • The intercept is the constant term in the equation.

4. How to find the intercept of two lines in Excel

  • If you have the equations of the two lines:
    1. Set the equations equal to each other.
    2. Solve for x. This gives you the x-coordinate of the intersection point.
    3. Substitute this x-value into either equation to find the y-coordinate of the intersection point.
  • If you only have the data points:
    1. Use the SLOPE and INTERCEPT functions to find the equations of the two lines.
    2. Follow the steps above to find the intersection point.

5. How to label x and y-intercept on a graph in Excel

  1. Add data labels: Right-click on the trendline and select “Add Data Labels.”
  2. Format data labels: You can customize the appearance and position of the labels.
  3. Manually add labels: Insert text boxes and position them at the intercepts. You can then type in “x-intercept” or “y-intercept” as needed.

Important Notes:

  • Data requirements: Make sure your data is numeric and there are no empty cells or text strings in the ranges you select for the calculations.
  • Equal number of x and y values: You must have the same number of x and y values for the SLOPE function to work correctly.
  • Zero values: Be aware that zero values will be included in the calculations.
  • Linearity: The SLOPE function and trendlines in Excel assume a linear relationship between your data points. If your data is not linear, these methods may not be accurate.

Advanced Applications of Slope and Intercept

Visualizing Data with Trendlines in Charts

To understand trends more effectively, use Excel’s charting tools to display slope and intercept visually:

  1. Select your data and insert a scatter plot.
  2. Right-click on the data points and choose Add Trendline.
  3. Check the option for Display Equation on Chart to see the slope and intercept.

Predicting Future Values

Combine the slope and intercept with the FORECAST.LINEAR function to predict unknown values. For example:

=FORECAST.LINEAR(6, B2:B6, A2:A6)

This predicts the Y value for X = 6 based on the existing data.

Common Errors and How to Fix Them

ErrorCauseSolution
#N/AMismatched ranges for known_y’s and known_x’sEnsure both ranges have the same number of data points.
#DIV/0!All X values are identical, causing division by zeroUse a dataset with varying X values.

Tips for Accurate and Efficient Calculations

  1. Structure Data Properly: Always align X and Y values in adjacent columns for accurate results.
  2. Handle Outliers: Check for extreme values that may skew results.
  3. Use Named Ranges: Assign names to data ranges to simplify formula references and reduce errors.

Extended Real-Life Example

Suppose you’re analyzing monthly revenue growth:

MonthRevenue (in $)
11200
21800
32400
43000
53600

Steps for Calculating Slope and Intercept

  1. Enter months in column A and revenue in column B.
  2. Use:
    • =SLOPE(B2:B6, A2:A6) – Result: 600 (indicating revenue increases by $600 per month).
    • =INTERCEPT(B2:B6, A2:A6) – Result: 600 (base revenue without time factor).

The linear equation becomes:

Revenue = 600 × Month + 600

Leveraging Excel’s Analysis ToolPak for Regression Analysis

For more robust statistical analysis, Excel’s Analysis ToolPak provides:

  • Regression outputs: Detailed metrics like R-squared and residuals.
  • Enhanced visuals: Charts that complement numerical insights.

To activate:

  1. Go to File > Options > Add-Ins.
  2. Select Analysis ToolPak and click OK.
  3. Access the Regression Tool via Data > Data Analysis.

Final Thoughts

Understanding and applying the SLOPE and INTERCEPT functions in Excel empowers you to analyze data trends effectively. These tools simplify identifying relationships between variables, making them essential for professionals in fields ranging from business analytics to engineering. By mastering these concepts, you can confidently tackle data-driven projects and create precise predictive models.
