How to Keep Column Width Fixed in Excel Pivot Table?

Sharing is caring!

Managing column width in Excel Pivot Tables is an essential skill for ensuring your reports are organized, professional, and easy to read. Pivot Tables are a powerful tool for summarizing and analyzing data. However, their dynamic nature often leads to frustration when column widths adjust automatically after refreshing or updating data. This behavior can disrupt formatting and make your reports look inconsistent.

In this comprehensive guide, you’ll learn multiple ways to keep column width fixed in Excel Pivot Tables. Each method is explained with detailed steps to ensure you can apply the one that suits your needs best.

Why Does Column Width Change in Pivot Tables?

By default, Excel is programmed to adjust column widths dynamically. This behavior is controlled by the Autofit Column Widths on Update feature. When you refresh or modify data in your Pivot Table, Excel recalculates the layout and adjusts the column widths to fit the content. While this can be helpful for some users, it often disrupts carefully formatted reports.

How to Fix Column Width in Excel Pivot Tables

Let’s explore various methods to stop column widths from changing and ensure your Pivot Tables maintain a consistent layout.

Method 1: Disable the “Autofit Column Widths” Option

Excel offers a built-in setting that allows you to disable the automatic resizing of columns when refreshing data.

Steps to Disable Autofit:

1. Select the Pivot Table:
   • Click anywhere inside the Pivot Table to activate the related tools.
2. Access Pivot Table Options:
   • In the Ribbon, go to the PivotTable Analyze tab (or Options tab in older Excel versions).
   • Click on the Options button in the Pivot Table group.
3. Modify Layout Settings:
   • In the PivotTable Options dialog box, navigate to the Layout & Format tab.

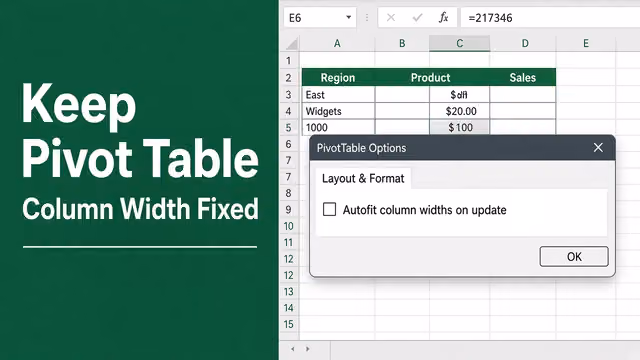

   • Uncheck the box labeled Autofit column widths on update.
   • Click OK to save the changes.

Why Use This Method?

This approach is the simplest and most effective way to keep column width fixed in Pivot Tables. It works well for both new and existing Pivot Tables, ensuring that your formatting remains intact.

Method 2: Manually Adjust Column Width

While disabling the Autofit setting is crucial, manually adjusting the column width allows you to customize your report layout further. This method ensures each column is sized according to your requirements.

Steps to Adjust Column Width:

1. Select the entire column (or multiple columns) you want to resize.
2. Hover your cursor over the boundary between two column headers until it changes to a double-sided arrow.
3. Drag the boundary to adjust the width as needed, or double-click to auto-fit the column to its content.
4. Repeat the process for other columns as necessary.

Combine with Autofit:

To prevent future adjustments, combine this manual resizing method with the “Autofit” setting disabled. This ensures that your changes remain permanent even after refreshing data.

Method 3: Preserve Cell Formatting on Update

Another effective way to retain consistent formatting, including column width, is to enable the Preserve Cell Formatting on Update option in Pivot Table settings.

Steps to Enable Formatting Preservation:

1. Select the Pivot Table and access the PivotTable Options dialog box (via the PivotTable Analyze tab).
2. Navigate to the Layout & Format tab.
3. Check the box labeled Preserve cell formatting on update.
4. Click OK to save changes.

Key Benefit:

This option ensures that any formatting, including cell colors, fonts, and column widths, remains unchanged after refreshing the data.

Method 4: Use a VBA Macro to Automate Column Width Locking

If you frequently work with Pivot Tables or handle complex reports, automating the process using a VBA macro can save time and effort.

Example VBA Code:

Below is a simple macro to lock column widths in all Pivot Tables on a worksheet:

Sub LockColumnWidth()
    Dim ws As Worksheet
    Dim pt As PivotTable

    ' Set the active worksheet
    Set ws = ActiveSheet

    ' Loop through all Pivot Tables in the worksheet
    For Each pt In ws.PivotTables
        pt.TableRange1.Columns.ColumnWidth = 15 ' Adjust this value as needed
    Next pt
End Sub

How to Run the Macro:

1. Press Alt + F11 to open the VBA editor.
2. Click Insert > Module to create a new module.
3. Paste the code into the module window.
4. Close the editor and return to Excel.
5. Press Alt + F8, select the macro (LockColumnWidth), and click Run.

Key Benefits:

• Automates the column width locking process.
• Ensures consistent formatting across multiple Pivot Tables.
• Ideal for advanced users handling repetitive tasks.

Troubleshooting Common Issues

Even after applying the methods above, you may encounter some challenges. Here’s how to address them:

1. Column Width Resets After Refresh

• Ensure the Autofit column widths on update setting is unchecked.
• Verify that no external VBA scripts or macros are overwriting your settings.

2. Macro Does Not Work

• Check if macros are enabled in your workbook. Go to File > Options > Trust Center > Trust Center Settings > Macro Settings, and enable macros.
• Ensure the macro is run on the correct worksheet containing the Pivot Table.

3. Pivot Table Formatting Disappears

• Enable the Preserve cell formatting on update option in Pivot Table settings.
• Save your workbook immediately after making any formatting changes to avoid accidental loss.

Advanced Tips for Managing Column Widths in Excel Pivot Tables

Here are additional techniques to improve your workflow:

1. Use Custom Views

Custom Views allow you to save different layout configurations, including column width settings. This feature is especially useful when working with multiple report formats.

How to Create Custom Views:

1. Go to the View tab on the Ribbon.
2. Click on Custom Views and select Add.
3. Name your view and save the current layout.
4. Switch between views as needed for different formatting requirements.

2. Lock Columns with Sheet Protection

To prevent accidental changes to column widths, you can lock the columns and protect the sheet.

Steps to Lock Columns:

1. Select the columns or cells you want to protect.
2. Press Ctrl + 1 to open the Format Cells dialog box.
3. Navigate to the Protection tab and check the Locked option.
4. Protect the sheet by going to the Review tab and selecting Protect Sheet.

3. Use Templates for Consistency

If you regularly create reports with similar formatting, consider using templates. Save a formatted workbook as a template file (.xltx) and reuse it for future projects.

Comparison of Methods to Keep Column Width Fixed in Excel Pivot Table

Why Fixing Column Widths Matters

Maintaining fixed column widths in Pivot Tables offers several benefits:

• Professional Appearance: Consistent formatting improves readability and presentation quality.
• Time-Saving: Prevents the need for repetitive adjustments after refreshing data.
• Improved Usability: Fixed column widths ensure reports remain clear and easy to navigate.

Final Thoughts

Keeping column width fixed in Excel Pivot Table is a valuable skill for creating professional and organized reports. Whether you’re preparing financial data, sales dashboards, or performance summaries, consistent column widths enhance the quality of your work.

Use the methods outlined in this guide, such as disabling the Autofit setting, preserving formatting, or using VBA macros, to achieve your desired results. Experiment with these techniques and adopt the one that best fits your workflow.
