How to Change Legend Name in Excel Pivot Chart?

Changing the legend name in an Excel pivot chart is a straightforward process that can significantly improve the clarity and visual appeal of your data presentation. This article will guide you through various methods to modify legend names, customize your pivot chart, and enhance your data visualization skills in Excel.

Why Change Legend Names in Pivot Charts?

Legend names in pivot charts help identify different data series, making it easier for viewers to interpret the information presented. However, default legend names may not always be descriptive or relevant to your specific data. By changing these names, you can:

• Improve chart readability
• Provide more context to your data
• Make your presentations more professional
• Customize charts to match your reporting needs

Now, let’s explore the different methods to change legend names in Excel pivot charts.

Method 1: Changing Legend Names Directly in the Pivot Table

Step 1: Create Your Pivot Table and Chart

1. Open your Excel spreadsheet containing the data.
2. Select your data range.
3. Go to Insert > PivotTable.
4. Choose where to place the pivot table.
5. Add fields to the pivot table.
6. Create a pivot chart by selecting the pivot table and going to Insert > PivotChart.

Step 2: Modify Field Names in the Pivot Table

1. Locate the pivot table connected to your chart.
2. Right-click on the field name you want to change in the pivot table.
3. Select Field Settings.
4. In the “Custom Name” box, enter your desired legend name.
5. Click OK.

Your pivot chart legend will automatically update with the new name.

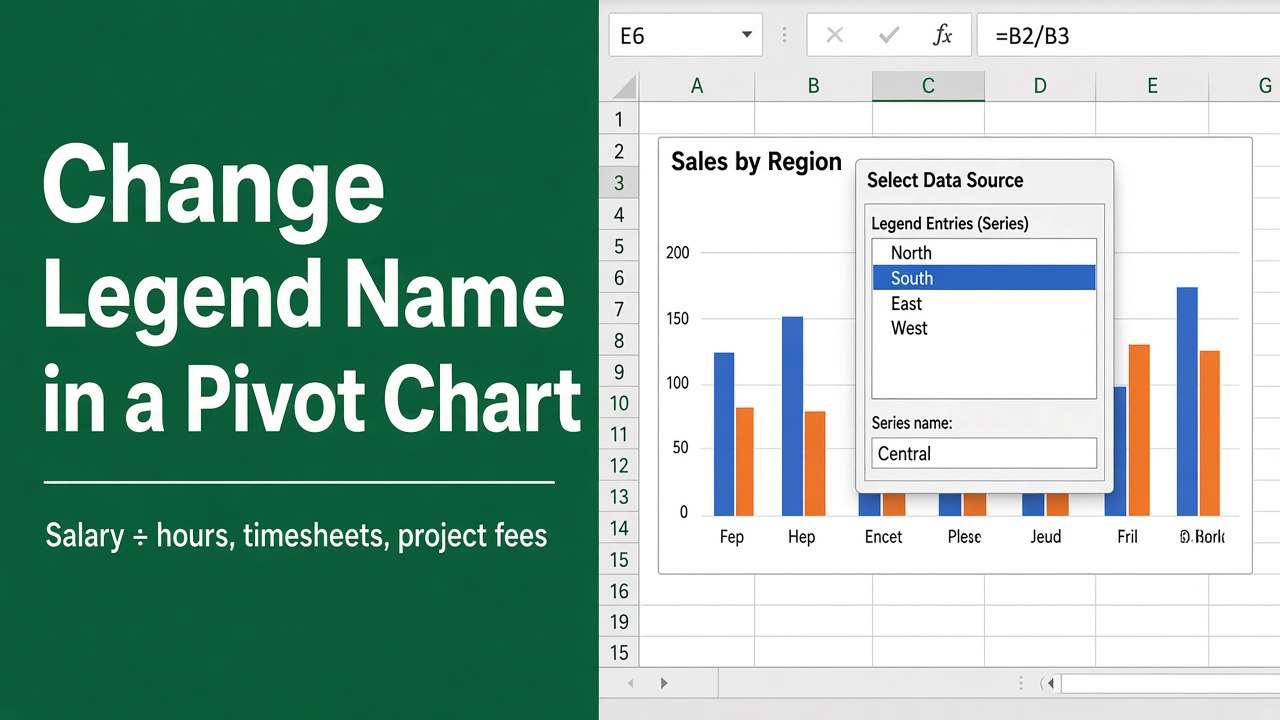

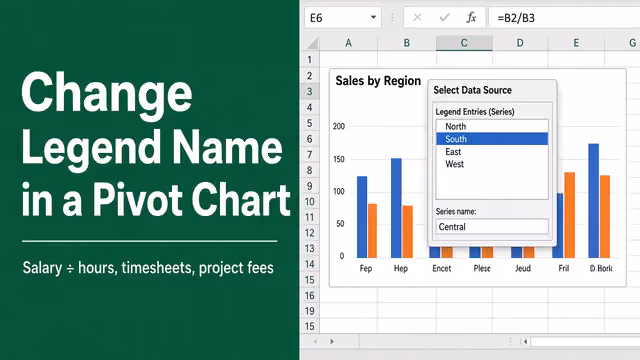

Method 2: Using the Select Data Source Option

Step 1: Access the Select Data Source Dialog

1. Click on your pivot chart to select it.
2. Go to Chart Tools > Design > Select Data.

Step 2: Edit Legend Entries

1. In the “Select Data Source” dialog, choose the legend entry you want to change.
2. Click Edit.
3. In the “Series name” field, type your new legend name.
4. Click OK to close the “Edit Series” dialog.
5. Click OK again to close the “Select Data Source” dialog.

Your chart legend will now display the updated name.

Method 3: Changing Legend Names in the Chart Layout

Step 1: Select the Legend

1. Click on your pivot chart to activate it.
2. Click on the legend to select it.

Step 2: Edit Legend Text

1. Double-click on the legend entry you want to change.
2. Type your new legend name.
3. Press Enter to confirm the change.

This method allows for quick edits but may not permanently change the underlying data source.

Advanced Techniques for Legend Name Customization

Using Formulas for Dynamic Legend Names

You can use formulas to create dynamic legend names that update automatically based on your data:

1. In a separate cell, enter a formula that generates your desired legend name.
2. In the pivot table field settings, reference this cell for the custom name.

Example formula:

=CONCATENATE("Sales for ", TEXT(TODAY(), "YYYY"))

This formula would create a legend name like “Sales for 2024” that updates automatically with the current year.

Applying Conditional Formatting to Legend Names

While Excel doesn’t allow direct conditional formatting of legend names, you can use a workaround:

1. Create a helper column in your source data.
2. Use IF statements or other logic to generate legend names based on conditions.
3. Use this helper column as the basis for your pivot chart legend.

Example formula for a helper column:

=IF(A2>1000, "High Value Sale", "Standard Sale")

Using VBA to Automate Legend Name Changes

For more complex legend name modifications, you can use VBA (Visual Basic for Applications):

Sub ChangeLegendNames()
    Dim cht As ChartObject
    Dim srs As Series

    Set cht = ActiveSheet.ChartObjects("Chart 1")

    For Each srs In cht.Chart.SeriesCollection
        Select Case srs.Name
            Case "Old Name 1"
                srs.Name = "New Name 1"
            Case "Old Name 2"
                srs.Name = "New Name 2"
        End Select
    Next srs
End Sub

This script allows you to change multiple legend names at once based on predefined conditions.

Best Practices for Legend Name Changes

When changing legend names in Excel pivot charts, consider these best practices:

1. Keep names concise: Short, descriptive names improve readability.
2. Be consistent: Use a similar naming convention across all chart elements.
3. Avoid abbreviations: Unless commonly known, spell out terms for clarity.
4. Use sentence case: Capitalize only the first word for a clean look.
5. Update regularly: Ensure legend names reflect current data and analysis.

Troubleshooting Common Issues

Legend Names Not Updating

If your legend names aren’t updating after changes:

1. Refresh your pivot table: Go to PivotTable Tools > Analyze > Refresh.
2. Check data source: Ensure your pivot table is referencing the correct data range.
3. Rebuild the chart: Sometimes, recreating the pivot chart can resolve update issues.

Limited Space for Legend Names

When dealing with long legend names:

1. Rotate the legend: Change the legend position to vertical for more space.
2. Use line breaks: Insert line breaks (Alt + Enter) in legend names for better formatting.
3. Adjust chart size: Increase the overall chart size to accommodate longer names.

Enhancing Your Pivot Chart Presentation

Customizing Legend Appearance

To further improve your pivot chart:

1. Change legend position: Move the legend to the top, bottom, left, or right of the chart.
2. Modify legend style: Adjust font, size, and color to match your presentation style.
3. Add a legend title: Provide context with a descriptive title above the legend.

Incorporating Data Labels

In addition to legend names, consider using data labels:

1. Right-click on a data series in your chart.
2. Select Add Data Labels.
3. Customize label position and content for added clarity.

Advanced Excel Features for Data Visualization

Using Slicers with Pivot Charts

Slicers provide an interactive way to filter pivot chart data:

1. Select your pivot chart.
2. Go to PivotChart Tools > Analyze > Insert Slicer.
3. Choose the fields you want to use as slicers.

Slicers can complement legend names by allowing users to dynamically filter the displayed data.

Implementing Timeline Filters

For date-based data, timeline filters offer an intuitive way to navigate:

1. Select your pivot chart.
2. Go to PivotChart Tools > Analyze > Insert Timeline.
3. Choose the date field to use for the timeline.

Timelines work well with legend names to provide temporal context to your data visualization.

Final Thoughts

Changing legend names in Excel pivot charts is a valuable skill for creating clear, informative data visualizations. By following the methods outlined in this guide, you can effectively customize your charts to better communicate your data insights. Remember to keep your legend names concise, descriptive, and relevant to your audience. With practice, you’ll be able to create professional-looking pivot charts that enhance your data storytelling capabilities in Excel.

Whether you’re a beginner or an advanced Excel user, mastering legend name changes will significantly improve your data presentation skills. Experiment with different techniques and find the methods that work best for your specific needs. As you become more comfortable with these tools, you’ll be able to create more engaging and informative pivot charts that effectively communicate your data insights.

Frequently Asked Questions

How do I change the legend name in an Excel pivot chart?

To change the legend name in an Excel pivot chart, you can use one of these methods: 1) Modify field names directly in the pivot table, 2) Use the Select Data Source option, or 3) Edit the legend text directly in the chart layout. The easiest method is often to right-click the field name in the pivot table, select ‘Field Settings’, and enter a new name in the ‘Custom Name’ box.

Can I use formulas to create dynamic legend names in Excel pivot charts?

Yes, you can use formulas to create dynamic legend names in Excel pivot charts. Create a formula in a separate cell that generates your desired legend name, then reference this cell in the pivot table field settings for the custom name. For example, you could use a formula like =CONCATENATE(‘Sales for ‘, TEXT(TODAY(), ‘YYYY’)) to create a legend name that updates automatically with the current year.

Why are my legend names not updating in the Excel pivot chart?

If your legend names aren’t updating, try these troubleshooting steps: 1) Refresh your pivot table by going to PivotTable Tools > Analyze > Refresh, 2) Check that your pivot table is referencing the correct data range, 3) If all else fails, try rebuilding the chart. Sometimes, recreating the pivot chart can resolve update issues.

How can I handle long legend names in Excel pivot charts?

To handle long legend names in Excel pivot charts, you can: 1) Rotate the legend to a vertical position for more space, 2) Insert line breaks (Alt + Enter) in legend names for better formatting, or 3) Increase the overall chart size to accommodate longer names. Choose the method that best fits your chart layout and presentation needs.

Can I use VBA to change multiple legend names at once in Excel pivot charts?

Yes, you can use VBA (Visual Basic for Applications) to change multiple legend names at once in Excel pivot charts. You can write a script that loops through the chart’s series collection and changes names based on predefined conditions. This is particularly useful for complex or repetitive legend name modifications across multiple charts or data series.
