How to Fix Excel Pivot Table Overlap Error? (5 Easy Methods)

Sharing is caring!

Are you struggling with an overlap error when trying to create or refresh a pivot table in Excel? This frustrating issue occurs when Excel detects that two or more pivot tables are trying to occupy the same space on your worksheet. Don’t worry – in this comprehensive guide, we’ll walk you through several methods to resolve the pivot table overlap error and get your Excel workbook functioning smoothly again.

What Causes the Pivot Table Overlap Error?

The pivot table overlap error typically arises when:

1. You have multiple pivot tables on the same worksheet that are positioned too close together or are actually overlapping.
2. You’ve made changes to the source data range for a pivot table, causing it to expand and overlap with another pivot table.
3. You’ve inserted new rows or columns in your worksheet that have shifted the position of your pivot tables, leading to overlap.

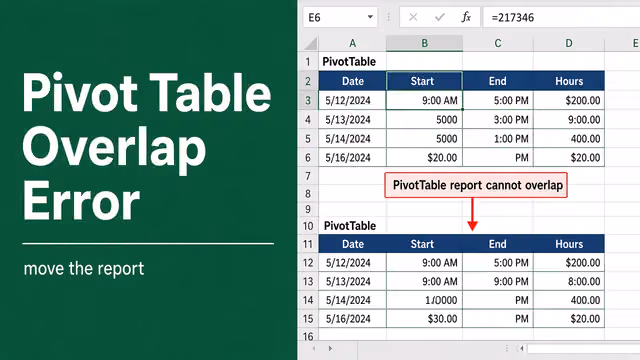

When the overlap error occurs, you’ll see a message like this:

“A PivotTable report cannot overlap another PivotTable report.”

Method 1: Manually Reposition the Pivot Tables

The simplest way to resolve the overlap error is to manually move the conflicting pivot tables so they no longer overlap.

Steps to Manually Reposition Pivot Tables

1. Click on one of the pivot tables to select it. You’ll see a border appear around the entire pivot table.
2. Hover your mouse over the border until you see the four-headed arrow cursor.
3. Click and drag the pivot table to a new position on the worksheet where it won’t overlap with any other pivot tables.
4. Repeat steps 1-3 for the other pivot table(s) involved in the overlap error.
5. Try refreshing your pivot tables again. The overlap error should now be resolved.

Method 2: Adjust the Pivot Table Data Range

If repositioning doesn’t work or isn’t feasible due to the worksheet layout, you can try adjusting the data range for one or more of the pivot tables.

Steps to Adjust the Pivot Table Data Range

1. Click anywhere inside the pivot table you want to adjust.
2. Go to the PivotTable Analyze tab on the Excel ribbon.
3. Click on the Change Data Source button.
4. In the Change PivotTable Data Source window, adjust the Table/Range value to select a data range that doesn’t overlap with other pivot tables.
5. Click OK to apply the changes.
6. Refresh the pivot table to ensure the overlap error is resolved.

Adjusting the data range can be helpful if:

• The source data has changed and you don’t need the full expanded range for your analysis.
• You can split your source data into multiple ranges and create separate pivot tables for each range.

Method 3: Move the Pivot Table to a New Worksheet

Another effective solution is to move one or more pivot tables to a new worksheet to eliminate any chance of overlap.

Steps to Move a Pivot Table to a New Worksheet

1. Click anywhere inside the pivot table you want to move.
2. Go to the PivotTable Analyze tab on the Excel ribbon.
3. Click the Move PivotTable button.
4. In the Move PivotTable dialog box, select New Worksheet and give it a meaningful name.
5. Click OK to move the pivot table to the new worksheet.

Benefits of using a separate worksheet for each pivot table:

• Completely eliminates the risk of pivot table overlap errors.
• Provides a cleaner, more organized workbook structure.
• Allows for easier printing and sharing of individual pivot table reports.

Method 4: Refresh Pivot Tables One at a Time

If you have multiple pivot tables based on the same source data, refreshing them all at once could trigger the overlap error. Instead, try refreshing each pivot table individually.

Steps to Refresh Pivot Tables Individually

1. Click anywhere inside the first pivot table.
2. Go to the PivotTable Analyze tab and click the Refresh button, or right-click the pivot table and select Refresh.
3. Repeat steps 1-2 for each subsequent pivot table, refreshing them one at a time.

This method is most useful when:

• You have several pivot tables that are closely positioned but not actually overlapping.
• The pivot tables are based on the same data source that has recently been updated.

Method 5: Use a Power Pivot Data Model

For more advanced Excel users, creating a Power Pivot data model can help avoid pivot table overlap errors altogether. A data model allows you to establish relationships between multiple tables, enabling you to create pivot tables that draw from the model rather than directly from worksheet ranges.

Steps to Create a Power Pivot Data Model

1. Go to the Data tab on the Excel ribbon.
2. Click the Get Data button and select From Table/Range.
3. Select your data range and click OK.
4. In the Power Query Editor, make any necessary data transformations and then click Close & Load.
5. Go to the Power Pivot tab and click Manage.
6. In the Power Pivot window, establish relationships between your data tables as needed.
7. Create your pivot tables from the Power Pivot Fields list rather than from worksheet data ranges.

Advantages of using a Power Pivot data model:

• Separate pivot tables can be created from the same data model without risk of overlap.
• Relationships allow for more complex data analysis across multiple tables.
• Data model updates can be easily propagated to all connected pivot tables.

Preventing Excel Pivot Table Overlap Errors

While the methods outlined above can help you resolve overlap errors when they occur, it’s even better to prevent them from happening in the first place. Here are some best practices:

1. Position pivot tables thoughtfully: When creating pivot tables, be mindful of their placement on the worksheet. Leave enough space between them to accommodate potential data range expansions.
2. Use named ranges for source data: Define a named range for your pivot table source data. This makes it easier to update the data range if needed, without inadvertently causing overlap issues.
3. Keep pivot tables on separate worksheets: As mentioned in Method 3, giving each pivot table its own worksheet is a surefire way to avoid overlap errors.
4. Use a Power Pivot data model: If you frequently work with multiple pivot tables and large datasets, leveraging Power Pivot can provide more flexibility and help prevent overlap errors.

By understanding the causes of pivot table overlap errors and employing these resolution methods and best practices, you can keep your Excel workbooks running smoothly and avoid frustrating disruptions to your workflow.
