How to Fix the “Pivot Table Name is Not Valid” Error in Excel?

Pivot tables are an essential tool in Microsoft Excel for summarizing large datasets and generating insights. However, you may sometimes encounter the “Pivot Table Name is Not Valid” error, which can disrupt your work. This error typically arises when creating, renaming, or refreshing pivot tables. Understanding why this error occurs and how to resolve it can save you time and frustration.

Common Causes of the “Pivot Table Name is Not Valid” Error

1. A Blank or Merged Column Header (the Most Common Cause)

The full message reads “The PivotTable field name is not valid. To create a PivotTable report, you must use data that is organized as a list with labeled columns.” Every column in the source range needs a heading. It appears when:

• A column in the source range has an empty header cell, often an extra empty column at the edge of the range, or a heading that was deleted after the pivot table was built.
• Header cells are merged, so some columns have no name of their own.
• You selected whole columns (e.g. A:Z) that include columns with no heading.
• The header row is not the first row of the selected range.

Fix: type a heading in every column (or remove empty columns from the range), unmerge header cells, then use PivotTable Analyze > Change Data Source to point the pivot table at the correct range and click Refresh. Formatting the data as a table (Ctrl + T) prevents the problem, because tables always have a header for every column.

2. Empty Data Range

One of the most common reasons for this error is trying to create a pivot table from an empty range. A pivot table requires a dataset to generate a summary. If Excel does not detect any data range, it will display the error.

3. Invalid Table Name

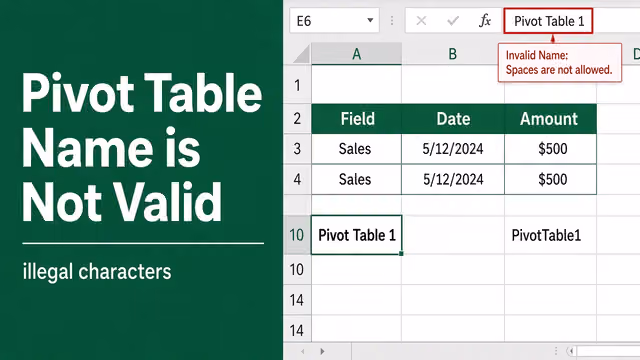

When naming a pivot table, the name must adhere to Excel’s naming conventions. If your table name includes special characters, spaces, or begins with a number, Excel might not recognize it as valid.

4. Overlapping Pivot Tables

If you attempt to place a new pivot table in a location that overlaps an existing one, Excel shows a related error, “A PivotTable report cannot overlap another PivotTable report”, often when you refresh and the table needs to grow. It is essential to ensure there is sufficient space between different pivot tables on the same worksheet.

5. Named Range Issues

Sometimes, users try to create a pivot table from a named range that no longer exists or is invalid. This can happen if the range was deleted or if its reference is corrupted.

How to Resolve the “Pivot Table Name is Not Valid” Error

1. Ensure the Data Range is Not Empty

Before creating a pivot table, ensure that the data range contains information. Follow these steps to check:

1. Select the range you want to use for the pivot table.
2. Check for any blank cells or rows that might be confusing Excel.

If your data range is empty, fill it with the required data or select a valid data range.

2. Verify and Correct the Table Name

Excel imposes specific rules on naming tables and pivot tables. The name:

• Must be unique in the workbook (for pivot tables) or among all names (for Excel tables)
• Excel table names can’t contain spaces and must start with a letter, underscore or backslash
• Pivot table names are more flexible, but keeping them short and simple, like Sales_2023, avoids problems in formulas and macros

To rename a pivot table:

1. Click on any cell inside the pivot table.
2. Go to the PivotTable Analyze tab.
3. In the PivotTable Name box, type a valid name.

For example, instead of “Sales #2023”, use “Sales_2023”.

3. Check for Overlapping Pivot Tables

Ensure that your new pivot table does not overlap with any other existing pivot tables. If you are working with multiple pivot tables on the same worksheet, follow these steps:

1. Select the location where you want the new pivot table.
2. Check for any existing pivot tables in the area.
3. Move either the new pivot table or the existing one to a different location if necessary.

4. Review Named Ranges

Named ranges can sometimes become problematic. To verify that the named range you’re using for the pivot table is valid, follow these steps:

1. Click on Formulas in the ribbon.
2. Select Name Manager.
3. Locate the named range you want to use.
4. Ensure the range reference is correct.

If necessary, you can edit the named range by clicking Edit in the Name Manager.

Advanced Solutions to Fix the “Pivot Table Name is Not Valid” Error

1. Rebuild the Pivot Table

If none of the above solutions work, rebuilding the pivot table might resolve the error. Here’s how:

1. Delete the existing pivot table.
2. Select your data range again.
3. Insert a new pivot table by going to the Insert tab and selecting PivotTable.
4. Set up your rows, columns, and filters.

This process creates a fresh pivot table, free from any underlying issues that may have caused the error.

You can also fix Pivot Table data source reference is not valid.

2. Check and Correct Data Formatting

Inconsistent or incorrect data formatting can trigger errors in pivot tables. Review your dataset to ensure:

• All numbers are formatted as numbers.
• Dates are in proper date formats.
• Text values are uniform.

Correct any formatting inconsistencies before trying to create or refresh the pivot table again.

3. Clear Old Items from the Pivot Table Cache

Excel has no “Clear Cache” button, but you can stop the cache from keeping deleted items, which often causes stale field names:

1. Right-click the pivot table and choose PivotTable Options.
2. On the Data tab, set Number of items to retain per field to None.
3. Click OK, then right-click and choose Refresh.

Table: Common Pivot Table Errors and Their Solutions

Error	Cause	Solution
“Pivot Table Name is Not Valid”	Empty data range	Ensure the data range contains valid information
“Pivot Table Name is Not Valid”	Invalid table name	Rename the table with a valid name
“PivotTable field name is not valid”	Blank or merged column header in the source data	Give every column a heading, then Change Data Source and refresh
“A PivotTable report cannot overlap another PivotTable report”	Overlapping pivot tables	Move pivot tables to separate locations
“Pivot Table Name is Not Valid”	Corrupt or missing named range	Verify and correct the named range using Name Manager
“Cannot group that selection”	Non-numeric or inconsistent data types	Correct data formatting
“Data source reference is not valid”	Moved or deleted data source	Update the pivot table reference

Best Practices to Avoid the “Pivot Table Name is Not Valid” Error

Following certain best practices when working with pivot tables can help prevent this error from occurring in the first place.

1. Use Proper Naming Conventions

When naming pivot tables or ranges, always stick to simple names that start with a letter, contain no spaces, and avoid special characters. This reduces the chances of Excel rejecting the name.

2. Ensure Data Consistency

Check that your data source is free from inconsistencies before creating a pivot table. Consistent data formatting minimizes the risk of errors. Use Excel’s Format as Table feature to ensure proper data structuring.

3. Keep Pivot Tables Separate

If you’re working with multiple pivot tables on a worksheet, leave ample space between them. This prevents overlapping issues and ensures each pivot table functions correctly.

4. Give Every Column a Header

Before building or refreshing a pivot table, make sure the source has one header row with a unique name in every column and no merged cells. Using an Excel Table as the source guarantees this.

Troubleshooting Additional Pivot Table Errors

Sometimes, while resolving the “Pivot Table Name is Not Valid” error, you may encounter other related pivot table errors. Here are some quick troubleshooting tips for common issues.

1. “Cannot Group That Selection” Error

This error usually happens when you try to group non-numeric or inconsistent data in a pivot table. To fix this:

• Ensure that all values in the column you’re trying to group are numbers or dates.
• Check for blank cells in the data range.

2. “Data Source Reference is Not Valid” Error

This error occurs when the data source for the pivot table has been moved or deleted. To fix this:

• Ensure that the data range referenced by the pivot table is still available.
• Update the data source by selecting the pivot table and choosing Change Data Source from the PivotTable Analyze tab.

Final Thoughts

The “Pivot Table Name is Not Valid” error in Microsoft Excel can be frustrating, but it is often caused by simple issues like invalid names, empty data ranges, or overlapping tables. By following the steps outlined in this guide, you can quickly identify and fix the problem. Whether it’s correcting table names, ensuring proper data formatting, or clearing the cache, resolving this error allows you to get back to analyzing your data without interruptions.

FAQs

What causes the ‘Pivot Table Name is Not Valid’ error?

Most often a column in the source data has a blank or merged header cell. Every column in the range must have a heading. Less often it is caused by an empty or invalid data range or a broken named range.

How do I rename a pivot table in Excel?

To rename a pivot table, select any cell in the pivot table, go to the PivotTable Analyze tab, and type a new, valid name in the PivotTable Name box.

How can I fix overlapping pivot tables?

You can fix overlapping pivot tables by ensuring that each pivot table has enough space on the worksheet. Move one of the pivot tables to a different location if necessary.

What should I do if the data range is empty?

If the data range is empty, fill it with the necessary data or select a valid data range before creating the pivot table.

What are the naming rules for pivot tables in Excel?

Pivot table names must be unique in the workbook. Excel table names (Ctrl + T) are stricter: no spaces, and they must start with a letter, underscore or backslash. Simple names such as Sales_2023 work everywhere.

How do I clear the pivot table cache in Excel?

There is no Clear Cache button. Right-click the pivot table, choose PivotTable Options, and on the Data tab set Number of items to retain per field to None, then refresh the pivot table.
