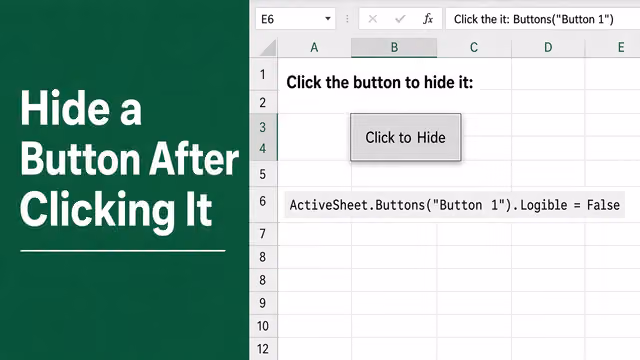

How to Hide a Button in Excel VBA After Clicking It?

Sharing is caring!

If you want to hide a button in Microsoft Excel after a user clicks it, you can accomplish this using some simple VBA code. This technique is useful for creating interactive worksheets where buttons guide users through a series of steps or data entry tasks. Hiding a button after it’s clicked can help declutter the interface and prevent users from clicking the same button multiple times unintentionally.

In this article, we’ll walk through the detailed steps to create a button, assign a macro that hides the button when clicked, and explain some key VBA concepts related to this task.

What is VBA in Excel?

VBA stands for Visual Basic for Applications. It is the built-in programming language used to create macros and user-defined functions in Microsoft Office applications like Excel, Word, PowerPoint, and Access. VBA allows you to automate repetitive tasks, perform complex calculations, manipulate data, and add custom functionality beyond what is available through the standard Excel user interface.

Some key VBA concepts that are particularly relevant to hiding a button after clicking it include:

• Command buttons: clickable buttons you can add to a worksheet to trigger an action or event
• Macros: sets of instructions that automate tasks, written in the VBA programming language
• Event handlers: special VBA subroutines that run automatically when a specific event occurs, such as clicking a button
• The Visible property: a property used to show or hide an object, such as a button, shape, or chart

Understanding these fundamental building blocks of VBA will help you not only hide a button, but also unlock a wide range of possibilities for extending and customizing Excel.

Step-by-Step: How to Hide an Excel Button When Clicked

Now let’s go through the process of hiding a button after a click event, one step at a time.

Step 1: Insert a Button in Your Excel Worksheet

The first step is to add a clickable button (officially called a command button) to your Excel worksheet:

1. In your Excel workbook, navigate to the Developer tab on the ribbon. If you don’t see this tab, you may need to enable it first in Excel Options.
2. On the Developer tab, locate the Controls group and click the Insert dropdown button.
3. In the Form Controls section, click the Button icon (it looks like a simple rounded rectangle).
4. Click and drag on the worksheet to draw the button in your desired size and location.
5. When the Assign Macro dialog box appears, click the New button to create a new macro.

This action opens the Visual Basic Editor (VBE) in a new window, where you can view and edit the VBA code for the workbook. The editor should automatically create a new module with an empty subroutine (also called a macro) named after the button, such as Button1_Click().

Step 2: Write the VBA Code to Hide the Button

In the Visual Basic Editor window, you should see a code module with a subroutine stub like this:

Sub Button1_Click()

End Sub

To hide the button when it’s clicked, you need to add a line of code between the Sub and End Sub statements. Here’s the code to add:

ActiveSheet.Shapes("Button1").Visible = False

If your button has a different name than “Button1”, replace that part of the code with the actual name of your button.

Here’s how this line of VBA code works:

• ActiveSheet is a built-in property that refers to the currently active worksheet.
• Shapes("Button1") is a way to reference a specific shape object on the active sheet by its name. In this case, we’re referring to the button object named “Button1”.
• .Visible is a property of the shape object that determines whether it is visible or hidden.
• Setting .Visible = False hides the button. The opposite .Visible = True would make it visible again.

Your complete macro code should now look something like this:

Sub Button1_Click()
    ActiveSheet.Shapes("Button1").Visible = False
End Sub

Step 3: Test Your Button

Save the workbook, switch back to the Excel window, and test your button. Click it once, and it should disappear.

If the button doesn’t hide as expected, double-check the following:

• The button name referenced in the VBA code ("Button1" in the example) exactly matches the actual name of the button shape.
• The macro is enabled and allowed to run. Check your macro security settings in Excel under File > Options > Trust Center > Trust Center Settings > Macro Settings.

Going Further: Additional Tips and Tricks

Now that you understand the basics of hiding a button with VBA, let’s explore some related concepts and techniques that can help you work more effectively with buttons and macros in Excel.

Referencing Buttons in VBA Code

To manipulate a button (or any other shape) with VBA, you need to know how to reference it correctly in your code. There are two primary ways to reference a shape:

1. By its name, using the syntax Shapes("Button1")
2. By its index number, using the syntax Shapes(1) to refer to the 1st shape on the sheet, Shapes(2) for the 2nd shape, and so on

In most cases, referencing shapes by their name is preferable, because the index numbers can change if shapes are added, deleted, or reordered on the sheet, which could break your code.

Showing a Hidden Button Again

If you want the ability to unhide the button again after hiding it, you can simply run another macro that sets the button’s .Visible property back to True, like this:

Sub UnhideButton()
    ActiveSheet.Shapes("Button1").Visible = True
End Sub

You could assign this macro to a second button, allowing users to toggle the visibility of the first button on and off.

Assigning Macros to Buttons

In the example above, we assigned the Button1_Click macro to the button while initially creating it. But you can also assign macros to existing buttons (or reassign them to different macros). Here’s how:

1. Right-click the button and choose Assign Macro from the context menu.
2. In the Assign Macro dialog box, select the desired macro from the list and click OK.

This technique works for assigning macros to other objects as well, such as shapes, text boxes, images, or chart elements.

Modifying Button Properties with VBA

In addition to the .Visible property, there are several other useful properties you can access and change with VBA to control the appearance and behavior of your buttons. Some common ones include:

• .Caption: gets or sets the text that appears on the button
• .OnAction: gets or sets the name of the macro assigned to the button
• .Height and .Width: gets or sets the size dimensions of the button
• .Left and .Top: gets or sets the position coordinates of the button

You can view and modify these properties in the VBA editor using the Properties window, or by adding lines of code to your macros.

Handling VBA and Macro Issues

If your button-hiding code isn’t working as expected, here are a few troubleshooting tips:

If you get stuck, don’t panic! Here are some helpful resources to consult:

• Microsoft’s official VBA language reference and documentation
• Excel-focused forums, blogs, and Q&A sites like Stack Overflow or Mr. Excel
• Step-by-step tutorials and courses on Excel VBA, available on platforms like YouTube, Udemy, or LinkedIn Learning

Remember, even experienced programmers rely heavily on Google and online resources to solve problems and expand their skills. Don’t be afraid to search for answers or ask for help when needed.

Final Thoughts

In this article, we’ve explored the process of hiding an Excel button after it’s been clicked, using a VBA macro. The key steps are:

1. Insert a command button (or any clickable shape) on your Excel worksheet
2. Write a VBA macro subroutine that sets the button’s .Visible property to False
3. Assign the macro to the button so it runs automatically when the button is clicked

Remember, VBA is a powerful and versatile language that can greatly extend the built-in capabilities of Excel. By mastering VBA, you can take your Excel skills to the next level and become a more efficient, productive, and valuable data analyst, business professional, or developer.

FAQs

Private Sub Button1_Click()
    ActiveSheet.Shapes("Button1").Visible = False
End Sub

Sub UnhideButton()
    ActiveSheet.Shapes("Button1").Visible = True
End Sub
